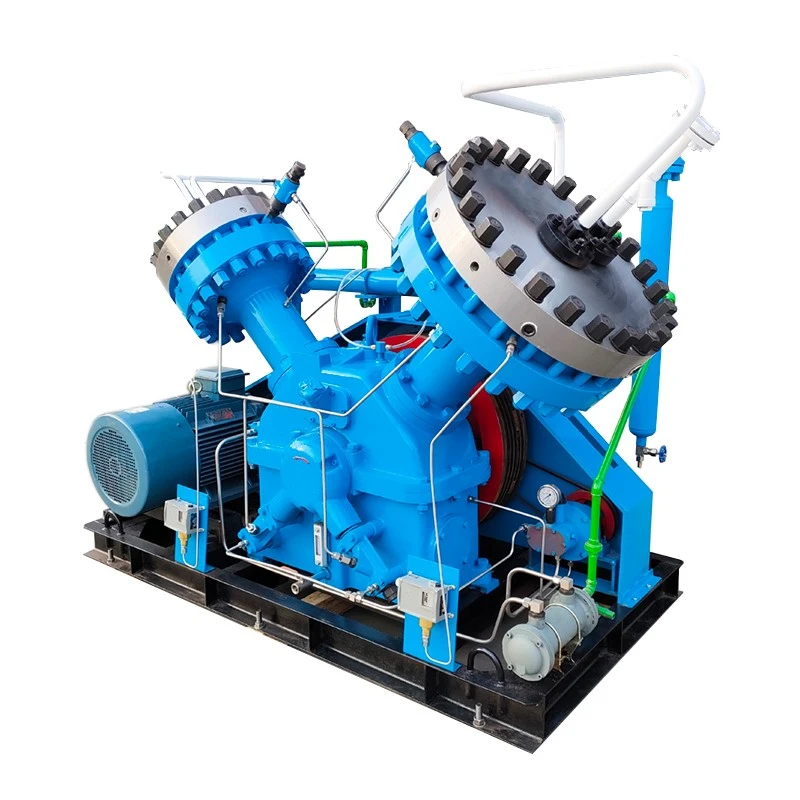

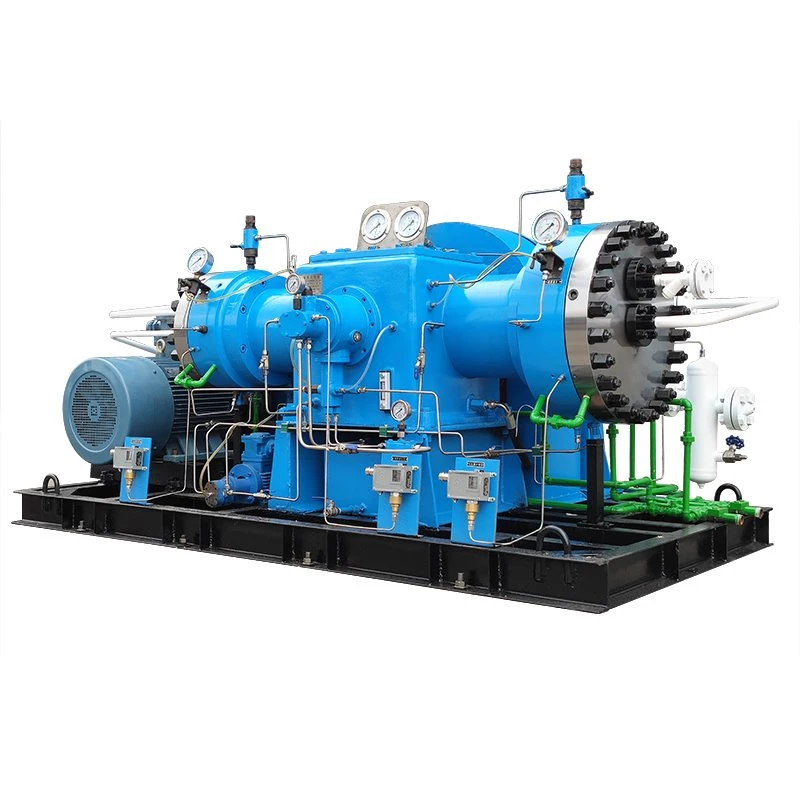

Diaphragm Gas Compressor
Diaphragm compressors serve a wide range of industries, including hydrogen energy and nuclear power, providing efficient high-pressure gas compression solutions.
As a high-performance positive displacement compressor with a unique design, the diaphragm compressor has become the industry-standard equipment for handling special gases, thanks to its core advantages of zero lubrication, complete sealing, and high purity.
Throughout the compression process, the working medium is completely physically isolated from the lubricant, ensuring gas purity levels of up to 99.999% (or even exceeding 99.9999%). Whether handling high-value rare gases or hazardous media, it offers unparalleled safety and reliability.
Product Features
Key Advantages
Superior Sealing and Contamination-Free Operation: The gas never comes into contact with lubricating oil, eliminating the risk of oil contamination or leakage; purity levels of 99.9999% or higher can be achieved, meeting stringent high-purity gas requirements.
Excellent Heat Dissipation: Effective cooling of the working cylinder facilitates a near-isothermal compression process, allowing for higher compression ratios and stable high-pressure gas output.
Long Service Life and High Reliability: Low operating speeds significantly extend the lifespan of wear parts; diaphragms undergo special heat treatment for greatly enhanced durability; a high-efficiency cooler ensures low-temperature, efficient operation, thereby extending the service life of lubricating oil, O-rings, and valve springs.
Advanced, Energy-Efficient Design: The overall structure is optimized for energy efficiency while meeting process parameters; the diaphragm head utilizes an embedded dual O-ring sealing system, offering far superior sealing performance compared to open-style designs.
Intelligent Safety Features: Equipped with an advanced, reliable diaphragm rupture alarm system; diaphragm installation is non-directional, making replacement quick and easy.
Technical Features
The diaphragm compressor features a newly designed diaphragm cavity profile that effectively enhances volumetric efficiency and optimizes gas valve performance. Low-speed operation minimizes mechanical wear, while a high-efficiency cooling system ensures the unit maintains low operating temperatures and high efficiency during prolonged, high-load operation. The diaphragm head utilizes an embedded dual O-ring sealing structure, significantly improving sealing reliability. A responsive and logically sound diaphragm rupture alarm system further ensures the safety of both the equipment and operating personnel. The overall design meets process requirements while delivering superior energy efficiency and extended maintenance intervals.
Applicable Gases
Ideally suited for the compression, transport, and filling of the following gases:
High-value rare gases such as hydrogen (H₂), helium (He), argon (Ar), ethylene (C₂H₄), fluorine (F), hydrogen sulfide (H₂S), chlorine (Cl), silane (SiH₄), and nitrogen trifluoride (NF₃), as well as various highly corrosive, toxic, flammable, explosive, and radioactive gases.
Applications
Diaphragm compressors are widely used in:
- Hydrogen energy industry (hydrogen compression, refueling stations, storage and transport)
- Nuclear power and related nuclear sectors
- Petrochemicals
- Food and beverage processing
- Semiconductor and electronics manufacturing
- Pharmaceuticals and medical gases
- Power generation and energy systems
- Defense and military industry
- Scientific research and experimental testing
They provide stable, high-purity, and safe gas compression solutions for everything from industrial-scale production to precision laboratory experiments.
Project Case Study
This project involved supplying a customized hydrogen diaphragm compressor to a hydrogen energy company in the Philippines for use in hydrogen compression, storage, and refueling operations. The equipment features an oil-free sealing design that ensures hydrogen purity exceeding 99.999%. It also offers excellent heat dissipation and a reliable diaphragm rupture alarm system, meeting the requirements for long-term, stable operation in the local high-temperature, high-humidity environment. Following successful delivery and commissioning, the system effectively enhanced the client's hydrogen handling efficiency and safety, earning high acclaim.
