High Pressure Portable Breathing Air Compressor
High pressure portable breathing air compressor is widely used for filling SCBA cylinders for firefighters, dive tanks, and industrial rescue team breathing apparatus.
|
Model |
SLT-100 |
|
Working Pressure |
30 MPa (300 bar) |
|
Displacement (Inhalation) |
100 L/min |
|
Type |
W-type layout - three-cylinder three-stage reciprocating piston compressor |
|
Drive |
Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or gasoline engine |
|
Lubrication Method |
Splash lubrication |
|
Cooling Method |
Air cooling |
|
Control Method |
Manual stop |
|
Clean Air |
1-stage air filtration, 1-stage oil-water separation, 1-stage air purification |
|
Safety Devices |
Intermittent installation valve, protective cover for transmission parts |
|
Packaging Dimensions (L×W×H) |
70×38×42 cm |
|
Weight |
46 kg |
|
Inflation Speed |
Approximately 22 minutes to inflate a 6-liter bottle to 30 MPa |
Product Features
Product Overview

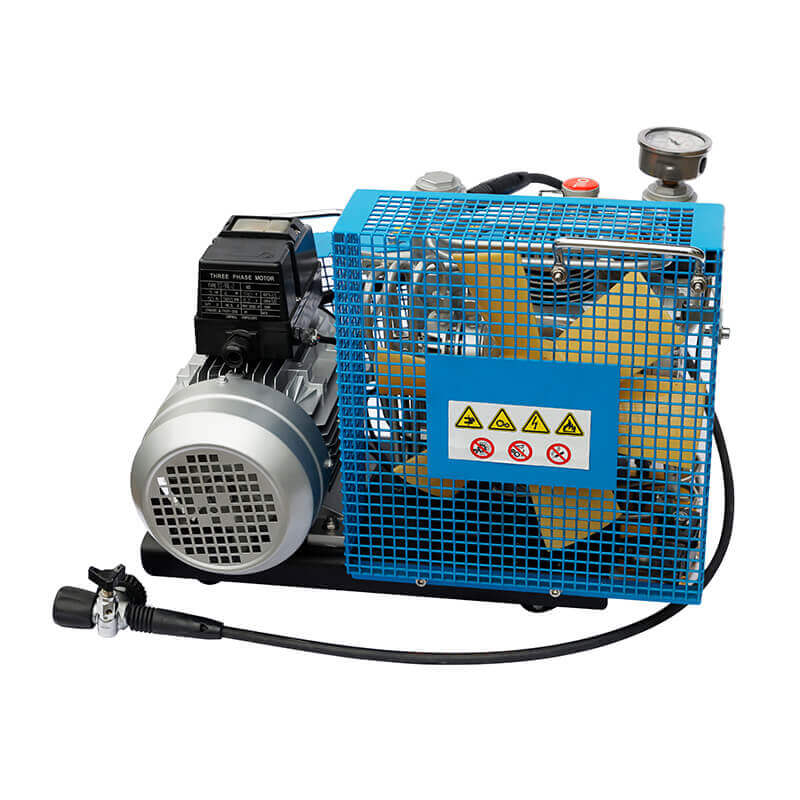

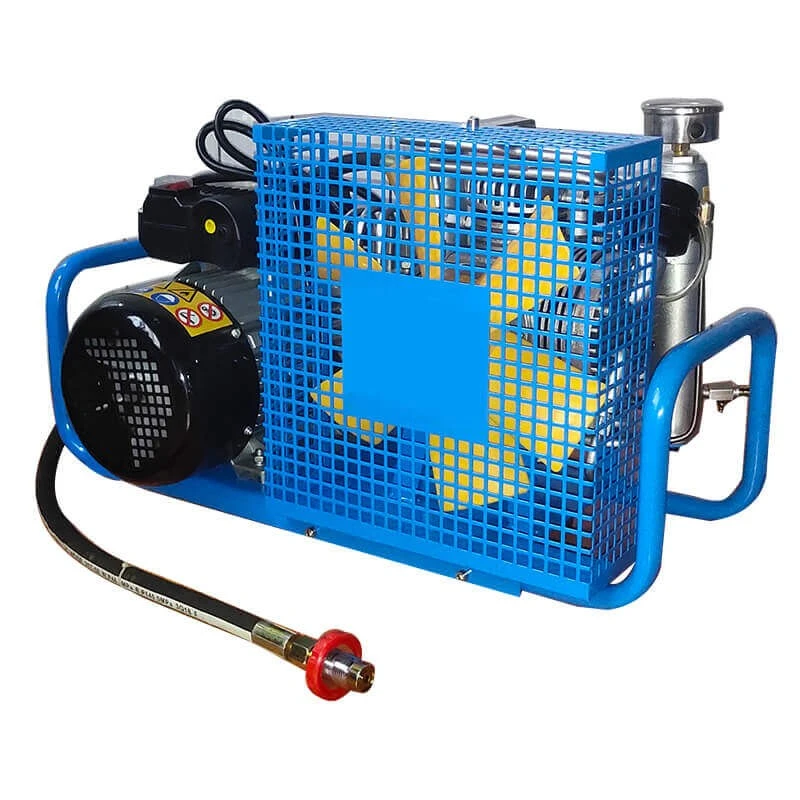

The SLT-100 is a compact, high-efficiency high-pressure portable breathing air compressor designed for firefighting, diving, rescue, and industrial cleanroom air supply applications. It utilizes a classic W-type three-cylinder, three-stage reciprocating piston compressor, progressively compressing atmospheric air (0.1MPa) to a high pressure of 30MPa (300bar). Through a multi-stage filtration system, it outputs clean, odorless, and safe breathing air that meets the EN12021 international breathing standard.
Whether for rapid air supply at fire scenes or underwater cylinder filling, the SLT-100 reliably and stably completes its tasks, making it a critical piece of equipment for safeguarding lifelines.

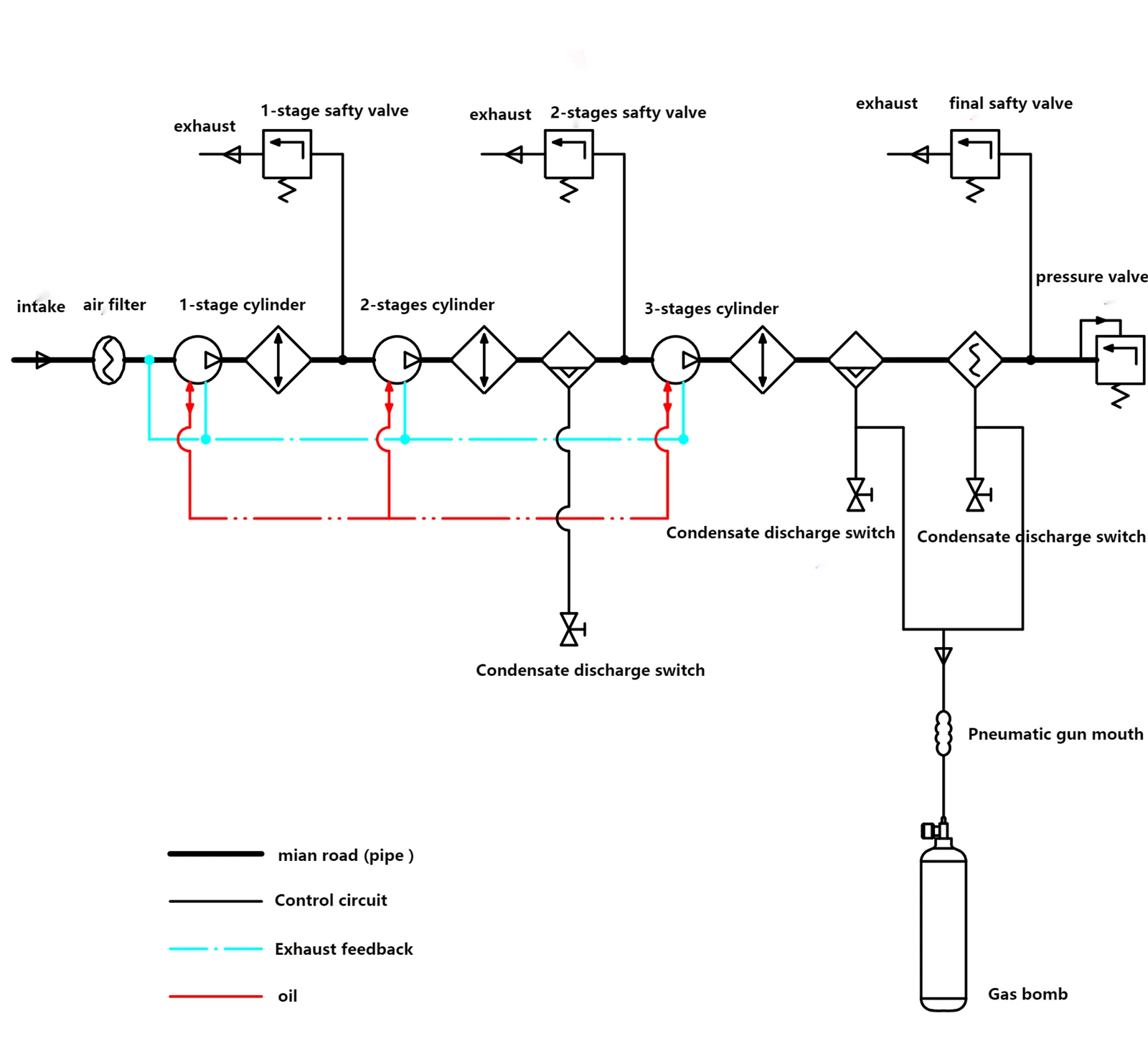

Working Principle
The SLT-100 follows a mature high-pressure compression principle:
Intake Stage: Ambient air passes through a paper air filter, initially removing dust and particulate matter (PM2.5 levels below 10μg/m³, meeting WHO standards).
Three-Stage Compression: Air sequentially enters low-pressure, medium-pressure, and high-pressure cylinders, gradually increasing pressure to 30MPa. The W-shaped layout ensures a low compression ratio, minimal vibration, and stable exhaust.
Cooling and Separation: After each compression stage, air is cooled by stainless steel cooling pipes and condensate and oil mist are removed by an oil-water separator.
Deep Purification: The high-pressure air finally flows through a triple-stage purification cylinder (activated carbon + molecular sieve + carbon monoxide absorber), thoroughly removing residual oil vapor, odors, and harmful gases, outputting clean, odorless, high-purity breathing air.
Throughout the process, a splash lubrication system ensures long-term wear resistance of the piston and cylinder walls, and the final-stage safety valve automatically relieves pressure in case of overpressure, ensuring the safety of the equipment and operators.
Product Structure and Key Details
|
Components |
Functions and Advantages |
|
Air Filter |
Paper filter element effectively intercepts dust and impurities in the intake air, protecting the cylinder from wear. |
|
Oil filler port and oil level indicator |
Convenient for checking and replenishing specialized lubricating oil, ensuring sufficient splash lubrication and reducing wear on machine parts. |
|
Interstage safety valves |
Each stage is equipped with a safety valve to relieve pressure in stages and prevent single-stage overload operation. |
|
Oil-water separator |
Manual drain valve allows for periodic removal of condensed oil and water, ensuring the compressed air remains dry and clean. |
|
Final stage purification cartridge |
Triple packing (activated carbon + molecular sieve + CO absorbent), refillable, easy to replace, and cost-effective. |
|
Stainless steel cooling system |
Corrosion resistant, fast heat dissipation, effectively controls exhaust temperature at each stage, and extends the overall lifespan of the unit. |
|
Shockproof pressure gauge |
Measuring range 0~5800psi/400bar, real-time monitoring of output pressure, stable and clear readings. |
|
Protective Cover |
Rotating parts are fully enclosed for protection, complying with safe operating procedures and protecting operators. |
|
High-strength nylon fan |
Lightweight and highly efficient at dissipating heat, preventing overheating even during extended operation. |
Core Product Advantages
Stable Structure and Durable Performance
Based on a mature German design, the castings are processed by a professional manufacturer, and the piston rings utilize Riken technology from Japan, resulting in excellent overall rigidity and a long fatigue life.
Multi-Drive System with Strong Adaptability

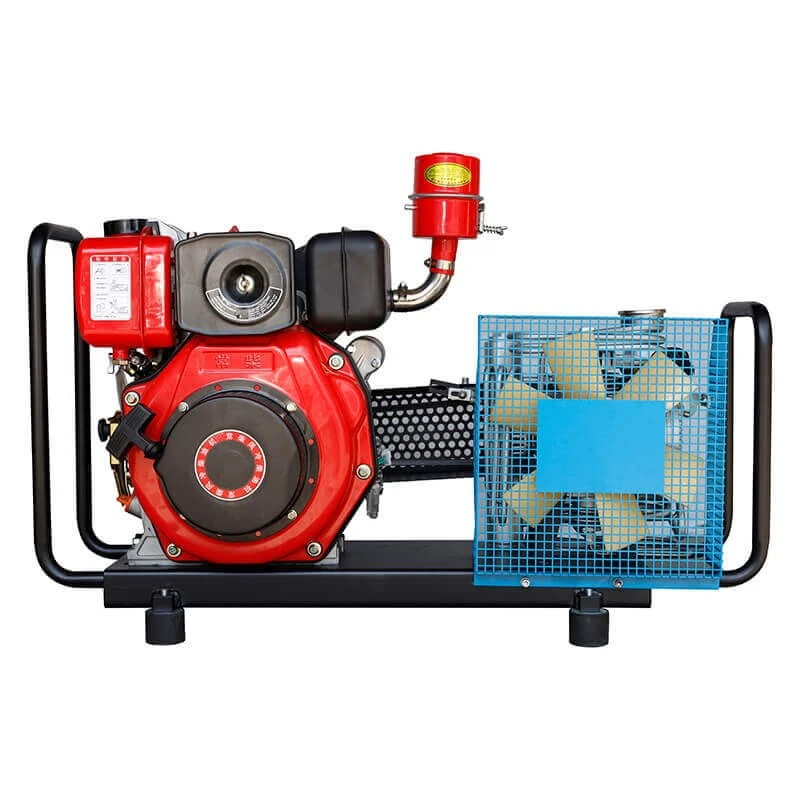

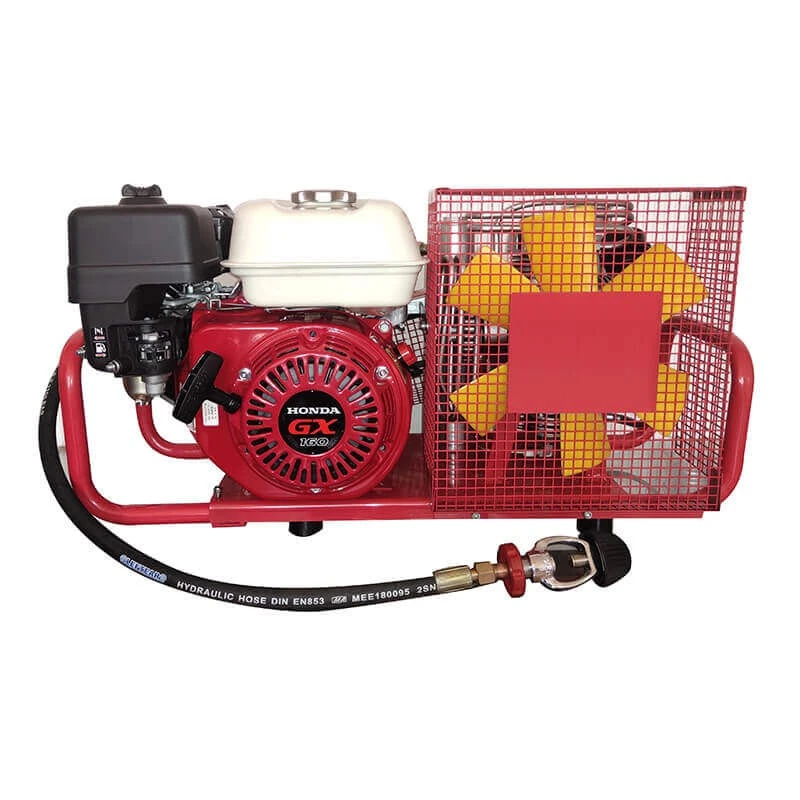

Supports 220V/380V electric motors or gasoline engines, allowing for normal operation in fixed stations, mobile vehicles, or power-free outdoor environments.
Purification System Meets International Breathing Standards
Output air strictly meets EN12021 standards, with oil, CO, water, and particulate matter content all controlled within safe limits, making it safe for human respiration.
Easy Operation and Economical Maintenance
Manual stop control, clear pressure gauge readings, convenient drain valve, and reusable purification packing make daily maintenance simple and quick.
Multiple Safety Protections
Each stage of safety valves, final stage overpressure relief, and transmission guards provide comprehensive safety protection.
Main Application Scenarios
- Fire and Rescue: Equipped at fire station refill stations or on fire trucks, it quickly refills breathing apparatus cylinders in scenarios such as fires, toxic gas leaks, and confined space rescues, ensuring continuous operational capability.
- Diving Operations: Suitable for diving clubs, aquaculture, underwater engineering, shipbuilding, and fishing industries, providing divers with a high-pressure clean air source to ensure underwater operational safety.
- Industrial and Special Purposes: Can be used in industrial fields requiring high air cleanliness, such as airtightness testing, high-pressure air supply, valve pressure testing, and laboratory gas supply.
